Anonymous01/06/26, 21:07No.2969431My Advanced Realistic Humanoid Robots Project - #7
Last Threads: https://warosu.org/diy/?task=search2&search_username=artbyrobot
To begin: the project goal: I am working to make a series of humanoid robots. I am using a Biblical theme of naming the first 3 robots I make Adam, Eve, and Abel. The goal is for these robots to have human body inspired musculoskeletal systems, advanced AI, and that they look human and pass for human to a casual observer at least at a distance. They must be able to walk, talk, run, dance, do sports, do chores, manufacture products, and make more robots just like themselves if not even better. My aim is to build a single robot arm and head and then add sufficiently advanced AI to that arm and head to enable it to build the rest of its own body for me. This way I am delegating the work of building the majority of my first humanoid robot to that robot rather than doing that work myself - and this is to save me time.
In a like manner, my goal with the AI is to code just enough AI that the AI can begin coding itself and this way I don't have to code most of the AI myself because it will self create itself. I liken this to building a seed and that seed growing into a tree because for me to code that tree would take too long for me and just creating the seed would then save me time.
95
Replies
A
Anon01/06/26, 22:10No.2969436
If you did all that youd be known as the terry davis of robotics if you could make a robot walk with a flexible spine youd get an email from tesla and the like i think
A
Anon01/08/26, 08:37No.2969750
You know motors glitching from radio is bad for the robot but itd be fun to watch lol
A
Anon01/09/26, 23:38No.2970014
The universe/multiverse or what have you may belong to God but the world belongs to miku
A
Anon01/17/26, 05:33No.2971278
I was randomly talking to chatgpt about how I have been feeling burdened by having to make my own BLDC motor controllers for my robot lately and it randomly mentioned integrated half-bridge power modules as something I could use to cut down on my labor load in making these motor controllers. This immediately stood out to me as something I'd never heard of and something intriguing. I have so far been working on my lowside switch and highside switch which together form a half bridge. Many solder connections have been involved and alot of discrete components are involved. The concept of an integrated half bridge on a single chip - meaning two big power mosfets and all the drive circuitry for those power mosfets all condensed into a single chip would be a huge reduction in size and component count as well. So I researched if any are able to do 8v 30a for my 2430 BLDC motor's needs. Turns out there are some out there. At first I was looking at Texas Instruments CSD95377Q4M Half‑Bridge Driver (30A) which can do 30a continuous so perfect for me. However, I didn't want to lock myself into a single vendor chip that may one day be discontinued. I prefer something ubiquitous with many competitors making it that can be purchased from aliexpress. Something commodity level. This way I future proof it and don't have to worry about any one manufacturer discontinuing parts I'm using and prices soaring because of that or simply the part becoming unavailable. So after a bit further digging I found CSD95481RWJ QFN chipset on aliexpress sold by several vendors and one was under $1 each. So it is equivalent to two power mosfets plus all drive circuitry for each power mosfet all for under $1.
A
Anon01/17/26, 05:34No.2971279
This one also has 60a continuous rating. It is only 5mm x 6mm in size which to me is insane. This is so much smaller than the setup I've been working on yet just as powerful. They are usually used for tiny buck converters and used directly on videocard PCBs and in servers and in automotive PCBs and much more. In any case, using 3 of these half bridge chips you can drive a BLDC motor. The consolidation of so many parts into such a tiny package is truly blowing my mind. So I ordered 60 of these chips - enough to drive 20 BLDC motors. I am leaning toward using these for all my motor controllers if working with them is easier than working with discrete components like I have been. They are cheaper to work with I think - I'd have to run the numbers on that though. They even have built in temp sensing we can read in which is a bonus. Their built in current sensing will not work for BLDC motors so I'll still need my shunt resistor current sensing circuit setup external to it but that's ok. All in all these appear to be a game changer in terms of reducing part count so less potential points of failure and also reducing board footprint so miniaturizing my electronics even more which is very good for us. I'm still needing to work out now how I want to hook these up in terms of PCB making for it and any discrete external components needed to support it. It is also top cooled which is interesting. I'm envisioning using silicone thermal adhesive to glue on a copper pad that has my braided solder wick wires already soldered to it. These will carry the heat away to my water cooled pipe system.
A
Anon01/17/26, 05:36No.2971280
I'm kind of amazed that nobody really seems to use these for BLDC motor controllers. They seem perfect for it. Maybe I'll start a trend. Assuming I don't find out the hard way why they are never used for this application!note: the full product title: "(5pcs)100% original New CSD95481RWJ 95481RWJ CSD59950RWJ 59950RWJ QFN Chipset"note: for my previous BLDC motor controller design I was needing to use 6 digital IO pins to drive a single BLDC motor controller's 6 power mosfets by way of their control circuitry. But for a BLDC motor controller design using 3 CSD95481RWJ H-bridge chips, I will only need to use 3 digital IO pins on the microcontroller. These CSD95481RWJ H-bridge chips use a pwm pin that is a tri-state pin - you can have high, low, and floating as the signal you send to it from your microcontroller. Digital output high and low are the usual digital output modes but the floating mode you do in your code by configuring the pin to be a digital input pin which makes it a floating pin. These 3 states fed into the chip makes it either give you V+ as its output or V- as its output or just off/floating as its output. This corresponds perfectly to the normal h-bridge 3 states we'd be using with our discrete components previous microcontroller design. So this savings in total digital I/O pin usage on the microcontroller means you can drive more motors per microcontroller in theory which is pretty cool.
A
Anon01/17/26, 19:48No.2971401
11 years in and Gary just now discovers what anybody else working on their first motor project would have discovered day one
A
Anon01/18/26, 08:36No.2971494
Well I deep dove into the CSD95481RWJ IC route. I estimate it will cut the work in half roughly for every motor controller made and cut the size taken up by about 60% compared to my previous discrete components approach.Now I will note that I did come across the BTN8982TA which is rated to 40v and can handle 30a continuous 50a peak short burst. But it's TO-263 form factor so about 4 times as big as the CSD95481RWJ. It also costs about $2 each so double the price. It's not a bad option though all things considered but just not quite as good as the CSD95481RWJ for the reasons mentioned. I note it here so I don't forget about it. It can be a great option if the CSD95481RWJ doesn't work out in the end or something.Anyways, for the thermal concern - which is my biggest concern, I plan to top cool the CSD95481RWJ using a .2mm plate thermal siliconed into place on top of the CSD95481RWJ and then solder a bundle of 4 braided solder wick wires to that and run that off to the water cooled copper pipe about 4" away. The top cooling only handles about 30% of the cooling according to chatgpt. The most important 70% is from the bottom cooling through its pads on its bottom. For this I plan to use double stacked .2mm thick copper plate soldered to its IC pads. So that's .4mm thick. Also it will be around 2mm wide where it attaches to the pads. It will then route out from under the chip and swing upward into free space and head over to the 8v+ and 8v- buses coming from the 8v motor battery banks in the robot's lower torso. These thick copper traces I will fork off of with braided solder wick wire right near the CSD95481RWJ IC chip for thermal conductivity reasons. This braided solder wick wire will be live so I will wrap it in fiberglass window screen so nothing can touch it - preventing short circuits. It will then be electrically isolated from where it connects to the water cooled copper pipe with thermal conductive tape.
A
Anon01/18/26, 08:37No.2971495
The braided solder wick wire attaching to these thick copper traces will be a bundle of 4 per trace. The various decoupling capacitors this chip calls for I will connect to its output pins using flat flex PCB DIY hand made. I'll be attaching this PCB first and attaching the thick copper traces to the underside pads second as a separate layer that goes underneath the flat flex PCB layer. The flat flex PCB layer will mostly stay around the outsides of the chip and have its center cut out and removed - the part of it that would get in the way of the underside main pads under the chip. So the flat flex PCB will just hug the outsides of the IC mainly in a U shape around the chip leaving the center of the bottom of the chip free to solder to with my thick copper traces.Note: the thick copper traces will be cut out with scissors from a roll of .2mm copper sheeting I bought on amazon which I mentioned a few posts back. Double stacking it wil double its thickness and increase its conductivity both electrically and thermally.
A
Anon01/18/26, 08:38No.2971496
Note: in a usual setup with this CSD95481RWJ IC, a multilayer board with a array of vias is used to bring the heat downward off the chip and into another lower layer within the multilayer board where it can then radiate on said layer outward in every direction. In my approach, I use thicker traces than the layers of a multilayer PCB has so I have alot more local copper in play. Then instead of the heat transferring down and then outward in all directions on very thin copper, mine travels down then in a single direction outward away from the IC on that trace. The trace will need to be as wide as possible as soon as possible. I expect to get it from 2mm width - the width of the pad - to 5mm width within a few mm. This rapid transition to a wider width combined with the use of much thicker copper compared to a multilayer PCB's copper thickness of its layers means I should be able to exceed the thermal performance of a multilayer board using my approach. Especially since I also plan to quickly fork off the main traces with bundles of 4 solder wick wire braids that will carry the heat off to a water cooled pipe 4" away.Note: in my attached schematic I only show a single CSD95481RWJ IC because they are all wired up the exact same way. It's just doing it 3 times for each of the 3 phase wires of the BLDC motor.Note: I will use a single electrolytic capacitor per motor controller also not pictured in the schematic.
A
Anon01/18/26, 08:48No.2971501
You are a sick bastard and need to S T O P
A
Anon01/18/26, 22:41No.2971629
BLDC Driver ICs exist you know. Go on the Texas Instruments website and look for them, there are many options available. In a project like yours, you should probably use ready-made solutions whenever possible so there's less stuff you have to worry about.
A
Anon01/18/26, 23:38No.2971648
oh look another sexbot thread.
A
Anon01/19/26, 10:14No.2971764
I urge you to tread carefully, for what you are doing is not without profound ethical and spiritual implications. Remember the words of Ecclesiastes 7:13-14: "Consider the work of God: for who can make that straight, which he hath made crooked?" It is essential to reflect on the divine order and the sanctity of life as you work on this project. If you are a man of faith is it really worth an eternity in hell to create a sexbot?!
A
Anon01/20/26, 07:56No.2971964
OK, so when I was thinking of using both my discrete components motor controller design parts I already made and then also separately implementing the integrated half bridge IC design going forward, it hit me that the 8v- and arduino gnd tie together on the half bridge IC by necessity but this ruined their intended isolation I needed for my discrete components motor controller design particularly for the lowside switching portion of that schematic. On the lowside switching portion, the little mosfet has 12v- and arduino gnd tied to its source pin. If on the integrated half bridge I also have to tie arduino gnd and 8v-, then that means 12v- and 8v- and arduino gnd are all tied together always.
That completely ruined the necessary isolation between arduino gnd/12v- and 8v- that I had intended to be in place for my lowside switch setup. So that was bug #1 freshly introduced that I would then need to solve for in my discrete components motor controller design. When studying this out on the discrete components motor controller design, another error hit me: when any lowside switch turned on in the design, the 12v- dedicated power supply gnd and the 8v- motor supply gnd become connected as long as that lowside switch is on. Since every lowside switch had always access to 8v gnd on its source pin, then even one moment of 12v gnd and 8v gnd attachment anywhere on the robot would cause every lowside switch in the entire robot to immediately turn on at the same time.
A
Anon01/20/26, 07:58No.2971965
So if any turned on, then all turned on. This was a huge oversight. For some reason since I only designed and focused on one half bridge conceptually at a time, I did not consider the effects one half bridge has on its neighboring half bridges. This just never occurred to me. I guess conceptually I envisioned that every half bridge had its own personal 12v ground from its own personal 12v supply that was electrically isolated from the entire rest of the robot. But of course that's not practical even if it is technically possible. So in testing, things did work, but would have failed as soon as I tried to test more than one half bridge at a time. So I caught this bug before testing revealed it.I discussed this horrible situation with chatgpt and it taught me that in a complex system like a robot, grounds of all your different supply rail voltages cannot be relied on to be isolated from one another like I was treating it. Even if at times they were momentarily, one switch, one change and suddenly they are not and it all becomes a common system ground again. So if I can't safely assume a ground for any given voltage is safely disconnected from the grounds of other voltages, I should not rely on switching on and off access to any particular ground to any of my lowside switches. Instead, I should be shorting the gate driver of the lowside switches to ground to shut them off rather than messing with their source pin's ground connections like I was before. I am to leave the source pin's ground connection as 12v- and its gate connection as 12v+ at all times except when I want to shut it off - at which point I short the gate pin to gnd using my logic level mosfet to do so.
A
Anon01/20/26, 07:59No.2971966
The fix was very straightforward and minor: I just had to add a 100ohm resistor in series with the gate pin of my big power mosfet lowside switch and then reroute my little mosfet a09t drain pin to the big lowside mosfet's gate pin instead of its source pin. The connection to its gate pin must be downstream of that 100 ohm series resistor so that the path from the big mosfet's gate pin has almost zero resistance when traveling through the little mosfet's drain line and over to its source line into ground. This way when you turn on the little mosfet, the big mosfet's internal capacitor quickly empties out, flushing into the path to ground created by the little mosfet and that discharges the big mosfet, shutting it off. When you want it back on, you shut the little mosfet off, which allows the big mosfet's internal capacitor to charge up again, which turns the big mosfet back on. So the setup now acts like a normally on relay.Note: the resistor on the drain line of the little mosfet that we used to have when it fed into the source line previously is now removed. We want no resistance on there because that would impede the little mosfet's ability to discharge the big mosfet's internal capacitor in a timely manner. We want to be able to not only discharge that capacitor quickly but also direct all incoming current from the 12v+ line that makes it past the 100ohm resistor heading for that big mosfet's gate into our ground path. This rapid redirect flushes so much of that already limited current that hardly any can make it inside the gate of the big mosfet which causes the gate of the big mosfet's voltage to approach near zero volts. So it's called a "pull down" path to ground.Attached is a photo of my schematic before and after the fix.
A
Anon01/20/26, 08:00No.2971967
Attached is a photo of full updated schematic with the changes in place.That all having been said, this discrete components original bldc motor controller design, now fixed, is worth keeping archived, but is now basically abandoned now that I have access to the time, money, and space saving shortcut of my integrated half bridge IC based design. It's kind of sad to abandon something I spent so much time on, but who knows, I may still use it if I ever come across a motor that I can't find a cheap half bridge integrated IC for in the future. It's a great schematic to have at the ready for that scenario.
A
Anon01/20/26, 19:54No.2972075
Ok so I was thinking now that each half bridge is just a tiny IC rather than a pair of hefty power mosfets, the space taken up overall by my entire bldc motor controller is going to be about 3cm x 1cm x 2mm which is insanely small for 30a continuous at 8v motor controller! This realization caused me to reconsider whether I even need to treat this as a single motor controller cluster that has to be sat like a horse saddle onto the side of my bldc motor - my original intention for my discrete components original design for my original bldc motor controller. What I realized instead is that things are now so small that I can simply build a half bridge for each phase as a inline element nested inside the cable run leading to each phase wire of the bldc motor. So instead of having a dedicated spot for each motor controller, I'm going to have just a slight bulge in the phase wire leading out from the bldc motor and that bulge will contain the half bridge that handles that phase wire. All nested inline. This is the easiest way to implement and most streamlined I think. It also means the whole motor controller will just be "floating" in midair, not actually mounted to any motor or anything at all. Just part of the wire harness nested right in there. This is a radical approach IMO. Only made reasonable by the fact we miniaturized the design by such an insane degree.So the previous version of the schematic was intended to be mounted to the side of the motor like a horse saddle and had an l shape so inputs would come up from bottom and outputs out to left side toward motor phase wires. These L shaped half bridge setups would be stacked next to eachother side by side. In the new variation everything is inline, inputs coming from right and outputs exit out left side to motor.Here's the updated inline variation of the schematic (no longer L shaped flow like before).
A
Anon01/25/26, 23:31No.2972920
Ok so I realized I don't have to feed in 8v+ from an external wire when I can just pull it from a neighboring pin on the chip that has 8v+ already fed to it from one of the big 8v+ copper traces attached to one of the big 8v+ pads on the underside that connect directly to one of the side pins. That side pin can then be routed to any 8v+ requiring pins if I can find a path for this routing - which I did find. So that is one less external wire input needed - bringing total external input wires needed to 3 instead of 4 as far as the 30ga wires I need to attach. So now all I need for 30ga wire attachments are 5v+ from arduino, GND from arduino, and PWM from arduino. This saves work and simplifies the wiring so its a great improvement.Oh and I also did the same thing for the 8v- feed, pulling it from a local pad rather than a external wire feed for that.
A
Anon01/28/26, 15:46No.2973334
sup, I'm the robotics PhD guy from a few threads ago, can you tldr me on the progress ? Last time I told you to test one joint, did you achieve that ? Also is your mental health better? I remember last time you seemed completely narcissistic and delusional about your work, did you reconsider some things?
A
Anon02/04/26, 02:38No.2974534
I'm not a hater or anything, but I have to warn you Arty. Last night I was visited by an angel in my sleep. He told me God is mocking you by giving you tasks you can't accomplish. He's making a fool out of you to make an example. He called your project "Adam 2 electric boogaloo", mockingly.
A
Anon02/13/26, 08:39No.2976193
can someone explain what meds OP should be taking, but isn't?
A
Anon02/16/26, 03:33No.2976771
So I ran into some issues trying to make the DIY flex PCB for my integrated half bridge IC chip. This chip has extremely fine 0.4mm pin spacing so the PCB has to be insanely accurate. My previous discrete components BLDC motor controller variant enabled me to create much more crude and less dialed in flex PCBs and things still worked. But with this flex PCB it has to be very dialed in and with very high execution precision. This is no joke. The first issue is that my laser printer does not adhere well to the pcb transfer paper I bought on amazon. It prints on it with some of the toner showing up mirrored a inch or so away from where the print originally lands onto the PCB transfer paper.This means the ink isn't setting onto the transfer paper enough and is coming off onto the fuser roller or something and that is corrupting the fuser roller. This can destroy my printer's performance over time and cause improper fusing onto all prints going forward even for normal office use which means addresses I print on envelopes are smearing off while in transit and envelopes are being lost in the mail system for me. This is VERY VERY bad. So I had to ditch using this transfer paper.
A
Anon02/16/26, 03:35No.2976772
Thankfully chatgpt recommended using glossy magazine paper and so I gave that a try. I used Psychology Today magazine paper and the print went onto there PERFECTLY. I used 600 dpi setting, heavy as paper type. I prepped my copper flex PCB blank (Pyralux) with 400 grit sandpaper followed by alcohol prep pad wipes. Next, I laminated the glossy magazine paper print onto my copper flex PCB blank (Pyralux) with my laminator a few passes. Next I soaked the magazine and flex PCB sandwich in 110F water for around 30 minutes which turned the glossy magazine paper mushy/pulpy. I then rubbed the paper repeatedly with my fingers working from the outside edges and was able to roll it off gradually and gently. It came off in two layers. It leaves a bit of pulp residue behind on the pads but that is ok it doesn't affect the etching process later you can leave that. And with this method I got the cleanest traces on there EVER.
A
Anon02/16/26, 03:36No.2976773
But when I went to etch this clean PCB with toner in place, things fell apart again. I used room temperature water with my Ammonium Persulfate crystal and water mixture. So it was 68F water. I did not agitate the etchant much. The etching took about 2.5-3 hours! That is horrible etching speed. The larger copper planes took their dear time to evaporate and meanwhile the finer traces had undercutting so bad that the entire copper under the toner etched away and evaporated and the toner came off having nothing to stick to anymore and whose sections were lost. The total etching time is supposed to be no more than 5-15 minutes. 3 hours is totally unacceptable. I found out from chatgpt that the reason it took forever was I failed to heat the etchant to 110-120F and I failed to agitate the mix (stir or vibrate or w/e helps). I also learned from chatgpt that for every 10F increase in temperature of the etchant, the etching time cuts in half. So a increase to 110F will mean the etching time should come down to the 5 minute range pretty likely if I also agitate well. The instructions on the container of etchant crystals said room temperature and no agitation is fine. THEY WERE WRONG for SURE on that.
A
Anon02/16/26, 03:38No.2976774
So to address perfecting the etching process I plan to get a AC hot plate with temperature adjust which I already own - one for like pans or kettles cooking/heating. I also determined that the easiest way to agitate would be to put the etchant and PCB in a small container and create a apparatus that lifts and lowers one side of the container in a rhythmic way so that it rocks the etchant back and forth across the PCB. Below is my simple apparatus design for that. The advantage of this approach is its free if you have the very few parts needed. I can power it with my lab power supply. The n20 gear motor is like $1. Super easy to make. Can handle my 15g of etchant sloshing easily. Simple to make. Does not have anything going INSIDE the acid which would then be spinning and crashing into the PCB and possibly causing issues there. We want just a bear minimum amount of etchant batch per PCB job and so even a spinning stir rod with magnet setup would be hitting the PCB and tossing it around violently etc I didn't want that and didn't want acid on that and having to fish it out and clean it of acid. Prefer nothing going into the acid but the PCB itself. So rocking the whole container makes sense for this and resolves that problem.
A
Anon02/16/26, 03:42No.2976775
The rocker apparatus consists of a n20 gearmotor ($1 on aliexpress), a little wheel (paper and superglue composite wheel), string, a little block to get the motor up higher in placement than the etchant container. As the n20 gearmotor rotates it lifts the string, raising up one end of the etchant container. As it reaches 180 degrees of rotation (6 o'clock) it has lowered the etchant container back down. It repeats this raising and lowering of the container over and over in a cyclic pattern which will cause the etchant solution to slosh back and forth over the PCB improving the rate of the chemical etching reaction and moving copper ions away from the PCB surface being etched more efficiently. No pwm motor controller is needed I don't think since you can change the rock speed by changing voltage setting on the lab power supply and/or changing radius of the wheel that is turning and doing the lifting and lowering action.
A
Anon02/16/26, 09:51No.2976821
This is definetly not worth whatever you saved by buying the module or having the pcb made in pcbway. Bug desu no you should have ordered the model. Until i see the robot hands this is pointless.
A
Anon02/16/26, 12:58No.2976830
STOP THIS FUCKONG ABOMINATION OF A PROJECT RICHT NOW YOUR ANCESTORS ARE CRINGING IN THEIR GRAVES
A
Anon02/18/26, 01:33No.2977182
for fuck sake, this is going even worse that my low expectation
wtf man, 20 days to print doodled shit on some paper and do some stuff a 1rst year student can learn to do in an afternoon
how the fuck do you expect yourself to finish your robot sex slave before you are burning in hell for trying to make yourself as God ?
A
Anon02/18/26, 07:51No.2977214
So I was randomly watching YouTube recently and saw a George Hotz past broadcast entitled "George Hotz | Programming | Welcome to Gas Town and the future of Computer Use | Agentic AI | Part 1". It kind of shocked me to see this. I was under the impression for some years now that vibecoding was for total noob programmers who were incompetent and horrible coders that were happy to throw together some absolute trash bug filled code with LLM help and call it done. And that were they ever to need to go back and fix the code and remove bugs, it would be more trouble than it was worth due to the horrible code the LLM output. That it would be easier to rewrite it all from scratch at that point than to try to fix its bugs. I'd been watching this space closely though. That was the consensus I thought was at hand. But then this video threw a monkey wrench into that consensus. Here, a world renowned god-tier coder in George Hotz was using agentic AI and saying its the future of coding. Kind of blew my mind. I then deep dove into agentic AI, how agents work, what is the agentic loop, what are agent tools, what are agent skills, what is good vibe coding practice, what are good vs bad vibe coding methodologies, how much does it cost, etc etc. I discovered something called Claude Code and Codex and OpenCode and OpenClaw and people raving about these tools or warning about them and making fun of them. It is a incredibly polarizing topic with people adamantly for and against it all. I even listened to a 11.5 hour long audiobook called Vibe Coding Audiobook by Gene Kim, Steve Yegge. It was a huge deep dive for me. Full Post: https://forum.allaboutcircuits.com/ubs/llm-assisted-coding-custom-ecosystem-i-am-creating.1927/
A
Anon03/02/26, 06:43No.2979165
did OP die?
will we never see this magnum opus?RIP
A
Anon03/06/26, 05:13No.2979780
I have finished the orchestrator barebones implementation which now asks me to select a coding project to work on that section and then works with chatgpt to pull out all the relevant sections of code from my codebase to feed into chatgpt along with relevent context files so that chatgpt is all ready to copilot code development with me. It is tested and working well.I have also resumed progress on my diy web browser project. I'm currently working to get it to login to gmail and display my inbox for me. The robot will use this web browser to interface to the web for its own research and web use in general. But it'll have a usermode for my personal use too.For the electronics I have now got a temperature controlled hot plate and glass container to create a hot etching setup along with a thermometer to get the temp just right. I plan to start doing some test circuit board etching with heat control soon.Full text version of this project update here: https://forum.allaboutcircuits.com/ubs/coding-copilot-advancements-and-electronics-updates.1928/
A
Anon03/06/26, 09:56No.2979798
>Want to make walking, talking robots
Nice
>To mimic humans
You fucked up by saying that. That can be your secret goal, but your STATED goal should be to make furry/kemono girlfriends/sexbots. The furries are a bane on humanity, but credit where it is due, they put money down on their freakshit at insane levels compared to many other independent investors.
A
Anon03/12/26, 01:14No.2980781
I got together my temperature sensor and my hot plate and my glass container and some water and figured out where on the hotplate temp dial I need to be to get the desired water temperature. I then used label paper sticker and marked it off and wrote 118f on it which is the average temperature of that spot on the dial. It has about 15 degrees variance I think up or down. Good enough.Next, I mixed up a batch of water and PCB etchant (Ammonium Persulfate crystals and water mixture) using a postal scale to get the ratios right. I mixed it into the bottom third of a wet ones baby wipes container. It was 0.8oz total. Then I submerged the etchant mix into the warm glass basin of heated water to bring it up to temp. I noticed the etchant wet ones container wanted to tip over so I used scotch tape to tape it off in all 4 directions to the glass container and pull it under water a bit too in order to maximize temperature transfer from the hotter outside water into the etchant container contents to warm it efficiently. I skipped the automated agitator entirely opting to just stir the mix with a hot glue stick manually.All in all, it did etch within the 5 to 8 minutes range and I think etched even faster when the temperature was closer to 130f - closer to 5 minutes then maybe even 4 minutes I didn't time it. It was lightning fast compared to room temperature etchant which took 2-3 hours to etch a single board. So indeed, the instructions that said room temperature is fine were wrong. All that leads to is undercutting.
A

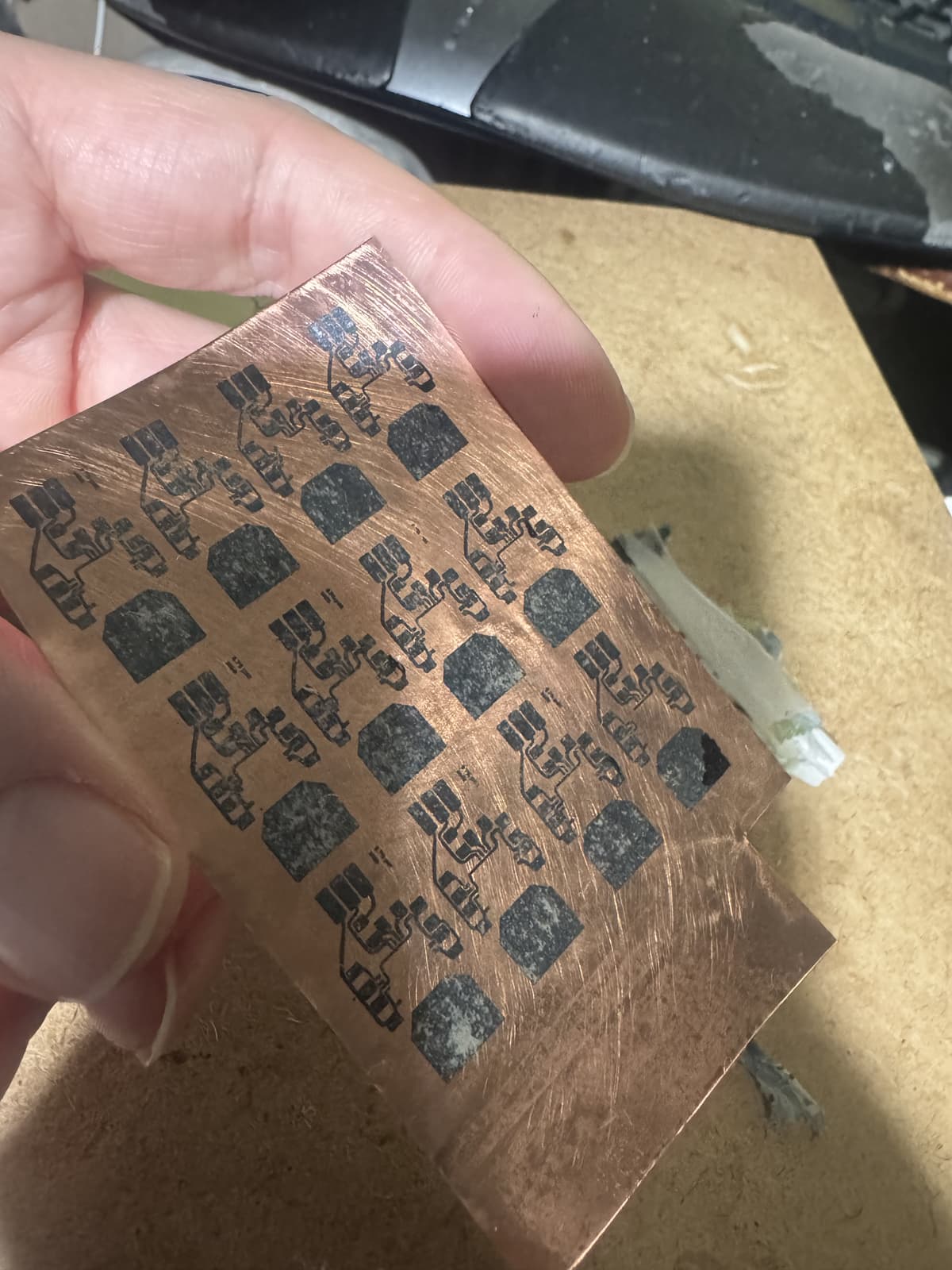

Anon03/12/26, 01:15No.2980782
Anyways, with the stirring and the warm temps my results were significantly improved and almost every board was usable. I produced 8 or 9 in total. Enough to do at least 2 motors and part of a 3rd at least. So plenty for now. I had still a tiny bit of undercutting on the fine traces, but rarely enough to break their continuity. I will make the traces slightly wider in Photoshop for future prints with the expectation that around 15% of the outer edges will be removed so we print wider to compensate and then the result will be the width we wanted in the first place after the undercutting has done its thing. This way the undercutting is worked with and non-detrimental. That's my planned workaround for it.In the rare instance of pinholes randomly in the center of pads or traces or a tiny open circuit on a thin trace, I am confident that a coating of solder over all of those areas will correct that. These little holes and whatnot are microscopically small so very easy to solder bridge as needed. I think for the most part my boards are almost all fully usable as is. I'm sure my methods will improve as I continue to tweak and iterate techniques over time - but the fact that we can already produce working circuits at this extremely fine detail and miniaturization level is already very encouraging. Any improvements from here is just icing on the cake IMO.My next step will be to solder on the half bridge IC chips using the method shown in this video - a method I think looks very impressive and sound and hopefully not too hard to replicate on my end: https://www.youtube.com/shorts/r-HaRjBvWgU
